DAB15
Two-way bi-amp 15″ active loudspeaker with 24-bit DSP, Bluetooth and 500W RMS (1000W peak) amplification. Maximum SPL 126dB.
Product Overview
Key Specifications
The DAB15 is a two-way bi-amplified 15″ active loudspeaker with an onboard 24-bit DSP processor and Bluetooth. Class D low-frequency and Class AB high-frequency amplification deliver 500W RMS (1000W peak) with a maximum SPL of 126dB, and the front-panel menu gives direct control over voicing mode, placement, subwoofer crossover, three-band EQ and delay.
| SPECIFICATIONS | |
| Type | Two-way bi-amp |
| DSP Processor | 24-bit |
| Frequency Response | 50Hz – 20kHz |
| Sensitivity (1m/1W) | 93dB |
| Impedance | 4 ohms |
| Woofer | 1 x 15″, 75mm VC, 600Z |
| HF Driver | 1.75″ titanium |
| Maximum SPL | 126dB |
| Amplifier Type | LF Class D / HF Class AB |
| Amplifier Power (RMS) | LF 400W + HF 100W |
| Peak Power | LF 800W + HF 200W |
| THD | ≤ 0.05% |
| Crossover | 2.0kHz |
| DSP | 96kHz sampling frequency, 24-bit |
| Bluetooth Module | Yes |
| Protections | Over-temperature, overload, DC protection, over-voltage, low-voltage, soft start |
| AC Input | AC 200–240V, 60Hz |
| Fuse | T5A / 250V |
| Dimensions (W x H x D) | 475 x 475 x 775 mm |
| Net Weight | 22 kg |
| Gross Weight | 24 kg |
| DSP CONTROL MENU | |
| Mode | LIVE (default), MUSIC, SPEECH, DJ |

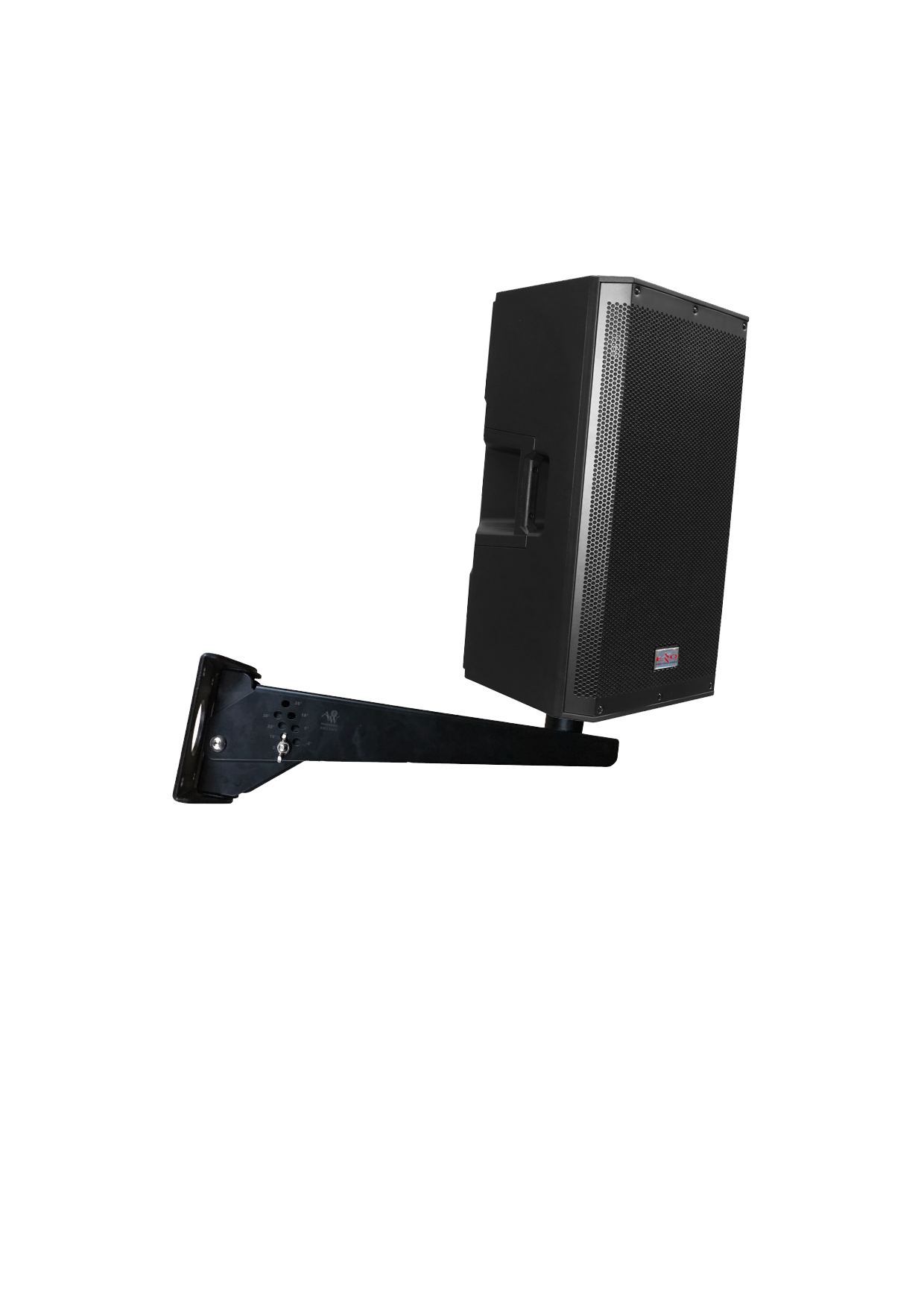

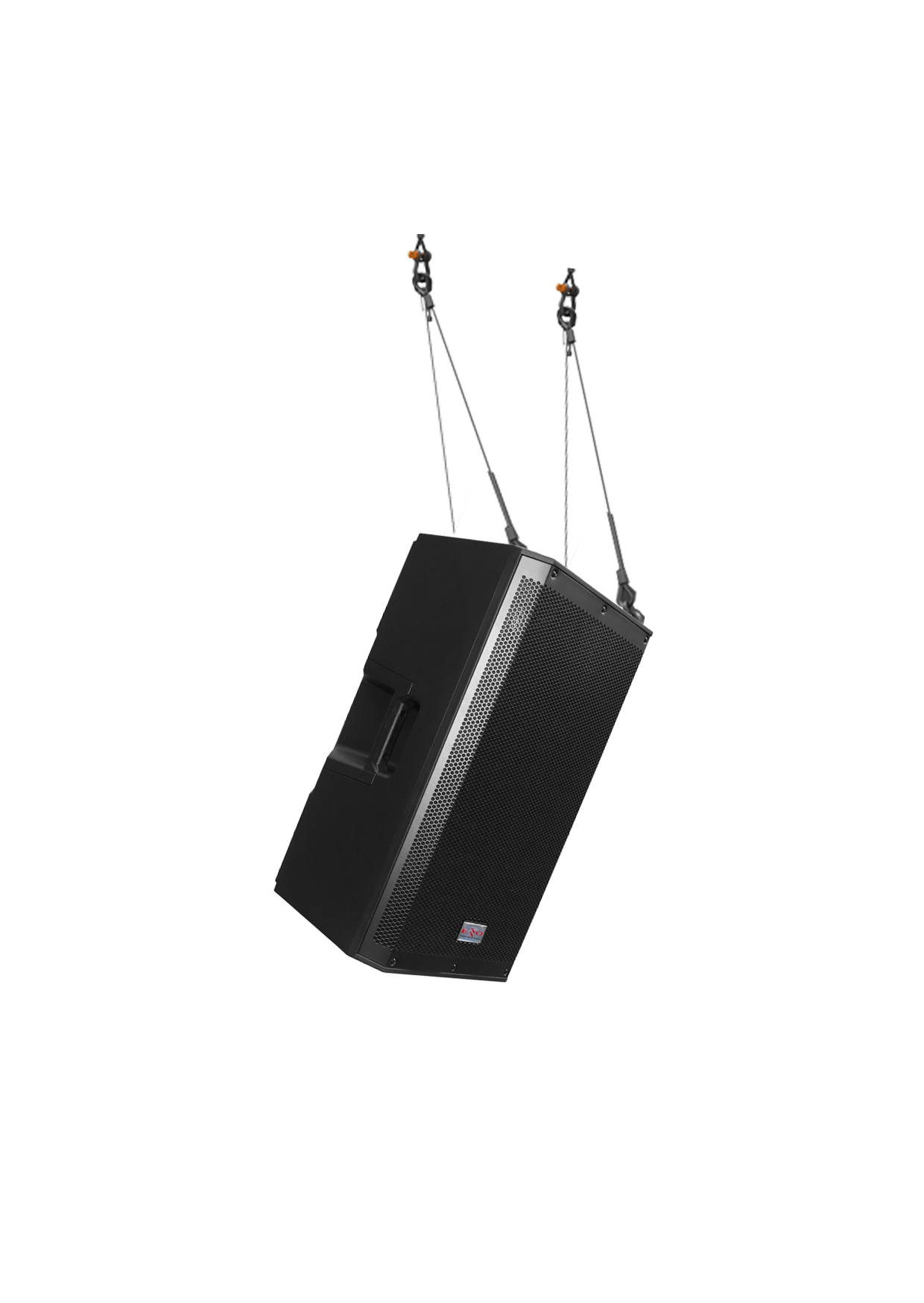

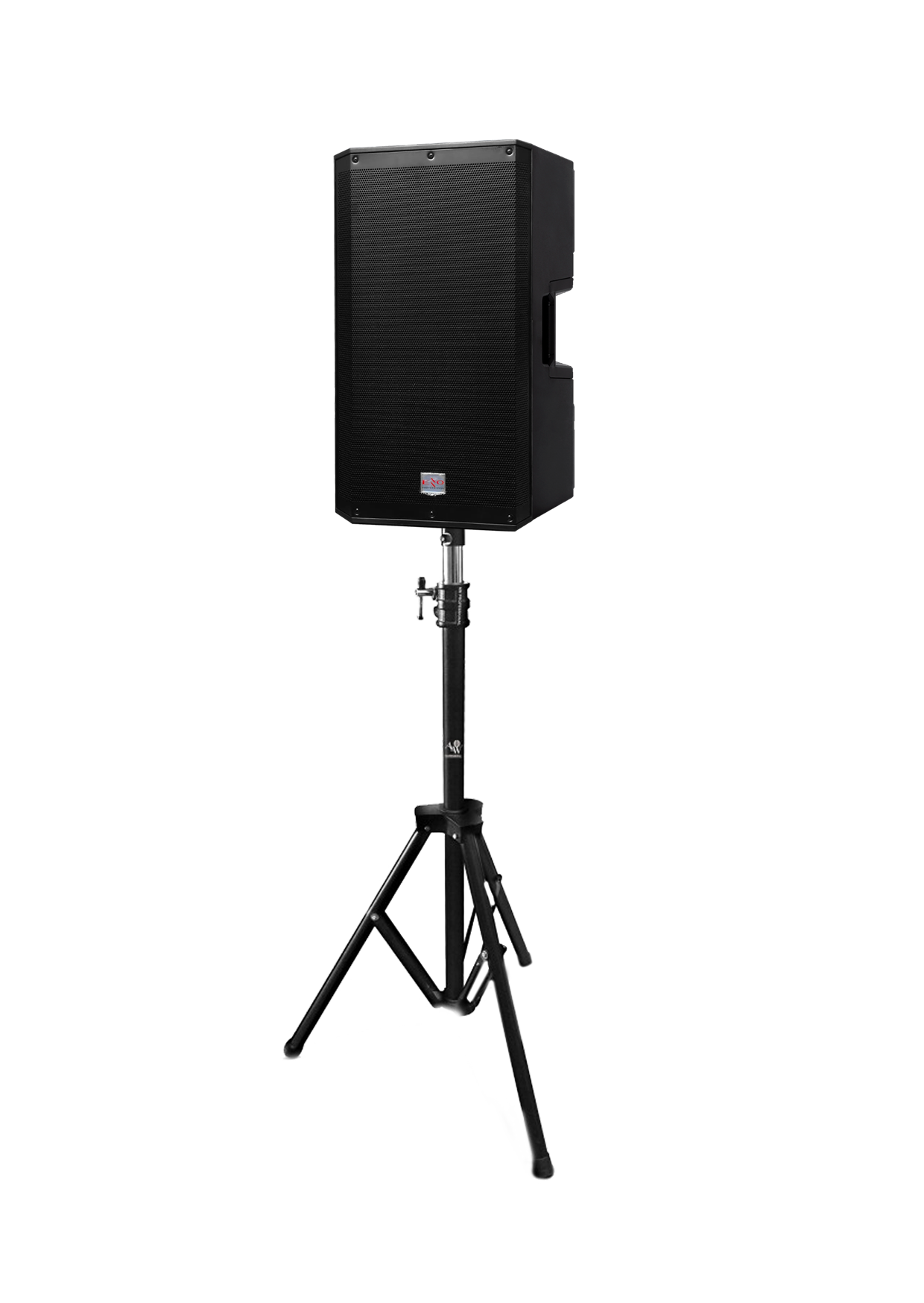

| Location | TRIPOD (default), MONITOR, WALL, SUSPEND |
| Sub | OFF (default), 80Hz, 100Hz, 120Hz, 150Hz, 15-inch sub, 18-inch sub |
| Treble | 0dB (default), adjustable −12dB to +12dB |
| Mid | 0dB (default), adjustable −12dB to +12dB |
| Bass | 0dB (default), adjustable −12dB to +12dB |
| Delay | 0 – 115 m |
| Bluetooth | OFF (default), Bluetooth connected, TWS connected |
| LCD Dim | ON (default) / OFF |
| Brightness | 5 (default), adjustable 1 – 10 |
| Reset | NO (default) — confirmation required |
| Info | Brand, product name, firmware version |
Mode menu
The Mode menu sets the type of sound the loudspeaker delivers.
- LIVE — live sound applications (default).
- MUSIC — recorded music playback.
- SPEECH — spoken word applications.
- DJ — recorded electronic music playback.
Note: the display returns to the home screen after twenty seconds of inactivity.
