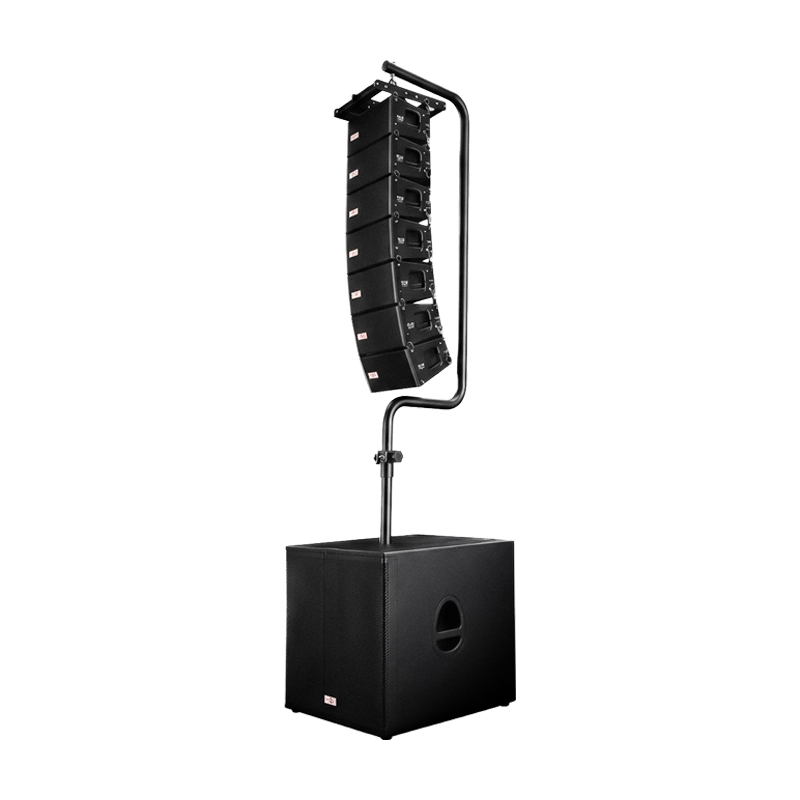

MLA186
Micro line array system: 8 array satellites plus an 18″ subwoofer, Class-D amplification, 24-bit/96kHz DSP and Bluetooth. Maximum SPL 130dB.
Product Overview
Key Specifications

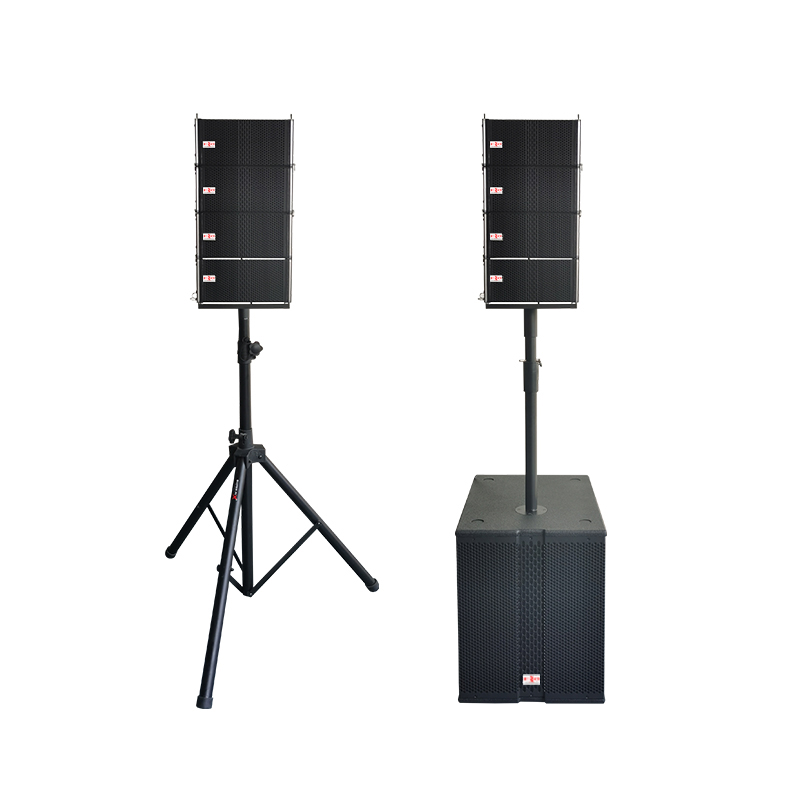

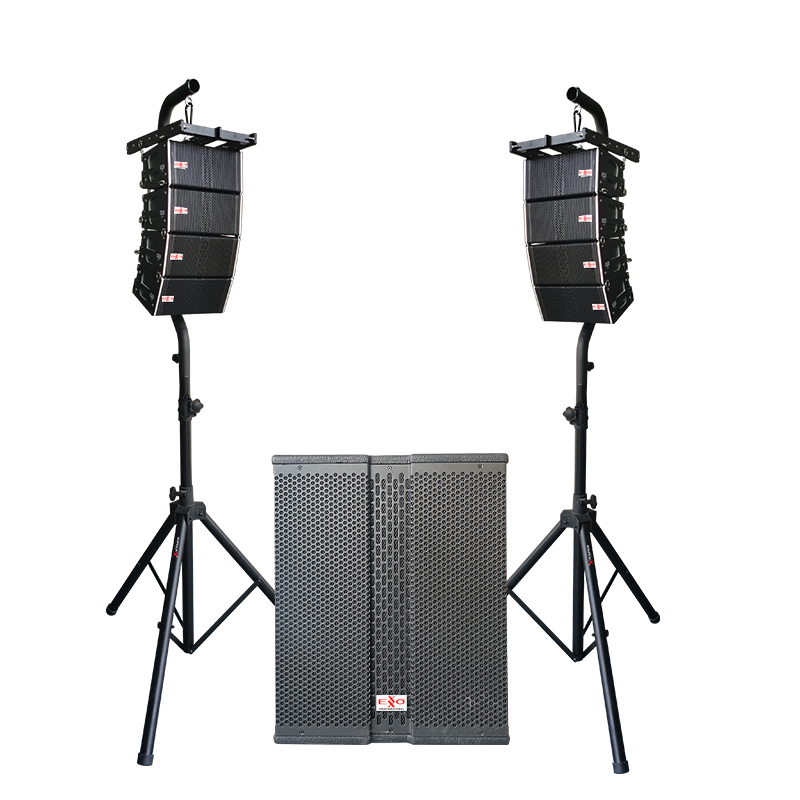

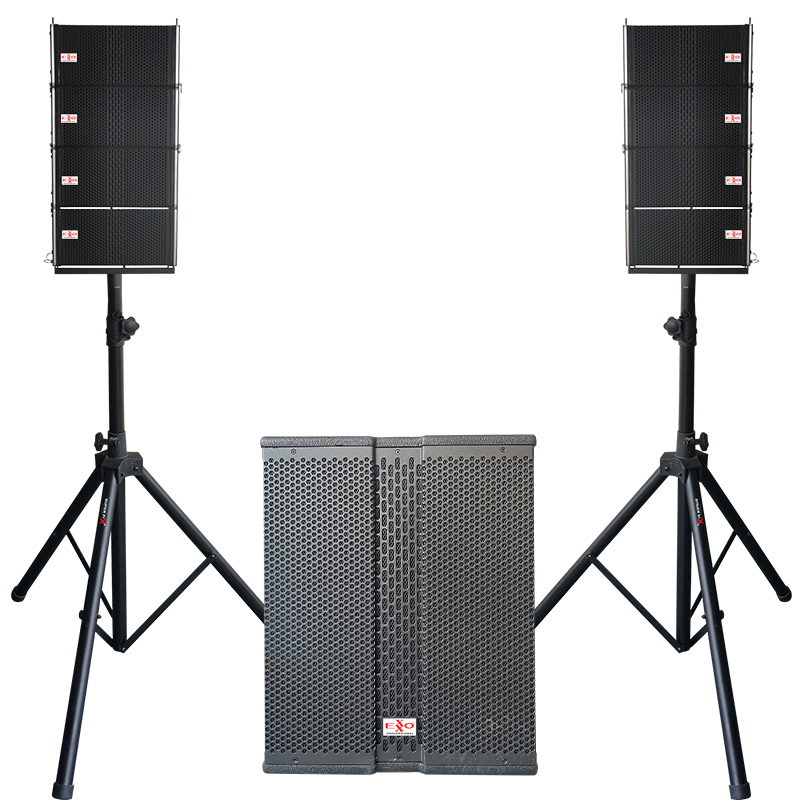

The MLA186 is the flagship of the MLA Series, pairing eight array satellites with an 18″ powered subwoofer. Class-D amplification and 24-bit / 96kHz DSP drive the system to a maximum SPL of 130dB, covering 45Hz to 20kHz, with 1.5° inter-element angle adjustment for precise array shaping and onboard Bluetooth. Plywood enclosures with a black sand-blast finish keep the satellites light enough to fly or stack quickly in 2.1 stereo or 1.1 mono configurations.
| SYSTEM | |
| Type | Micro line array system |
| Number of Array Elements | 8 |
| Maximum SPL (system) | 130dB |
| Amplifier Type | Class D |
| DSP | 96kHz sampling frequency, 24-bit |
| Bluetooth Module | Yes |
| THD | ≤ 0.1% |
| Protection | DSP-based multiband limiter, short circuit, overheating, overcurrent, DC |

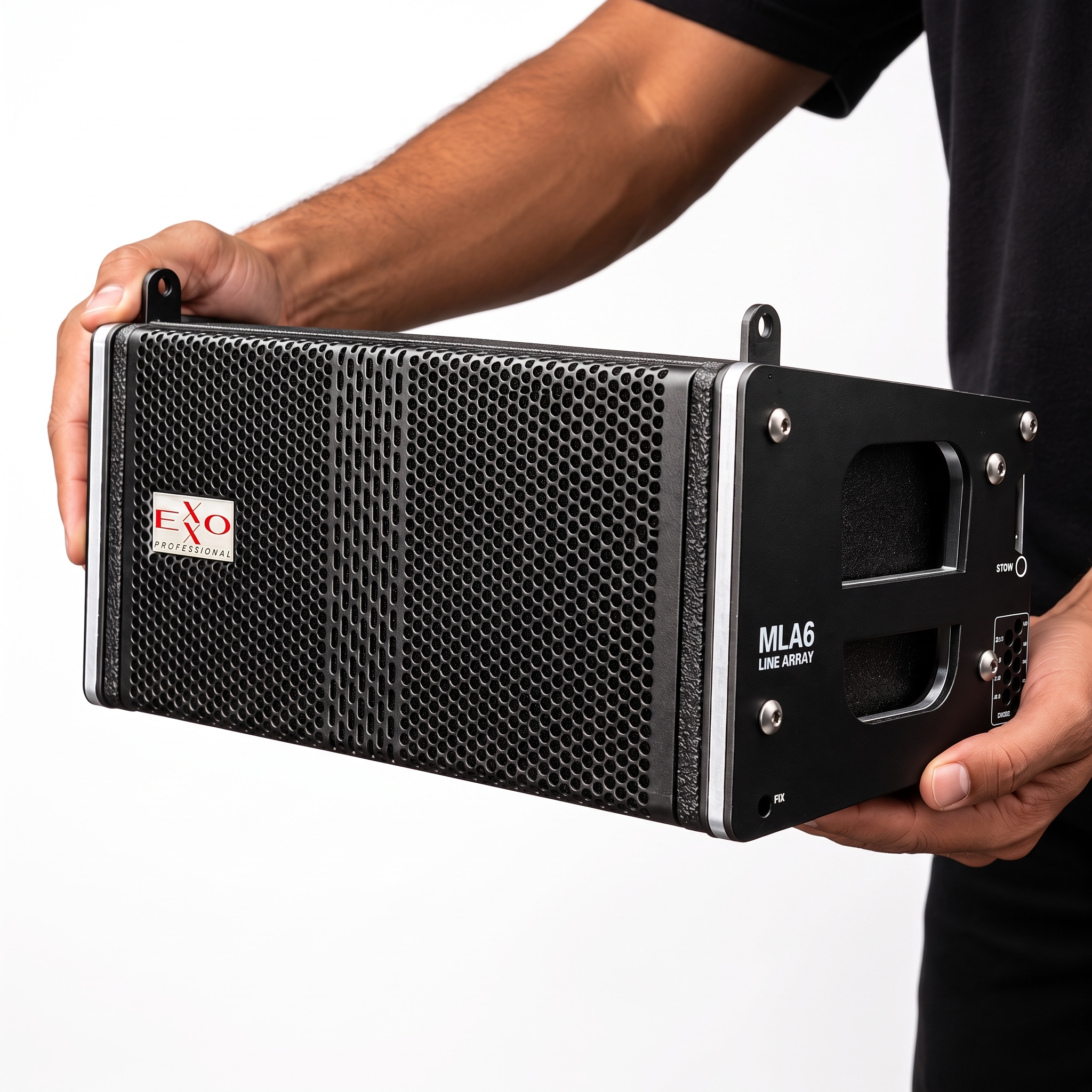

| ARRAY SATELLITES | |
| Power AES | 60W per unit |
| Amplifier Power (DSP) | 300W RMS / 600W peak |
| Frequency Range | 150Hz – 20kHz |
| Impedance | 16Ω |
| LF Drivers | 2 x 3″ |
| Sensitivity | 96dB (1W @ 1m) |
| Angle Adjustment | 1.5° x 1.5° |
| Coverage | 60° horizontal; vertical varies with array length and configuration |
| Dimensions | 555 x 330 x 365 mm |
| Weight | 34 kg |
| SUBWOOFER | |
| Driver | 18″, 4″ voice coil, 100 OZ |
| Frequency Range | 45Hz – 150Hz |
| Power Output | 1000W RMS / 2000W peak |
| Dimensions | 795 x 625 x 705 mm |
| Weight | 49 kg |
