MLA156
Mini line array system: 4 array satellites plus a 15″ subwoofer, Class-D amplification, 24-bit/96kHz DSP and Bluetooth. Maximum SPL 129dB.
Product Overview
Key Specifications

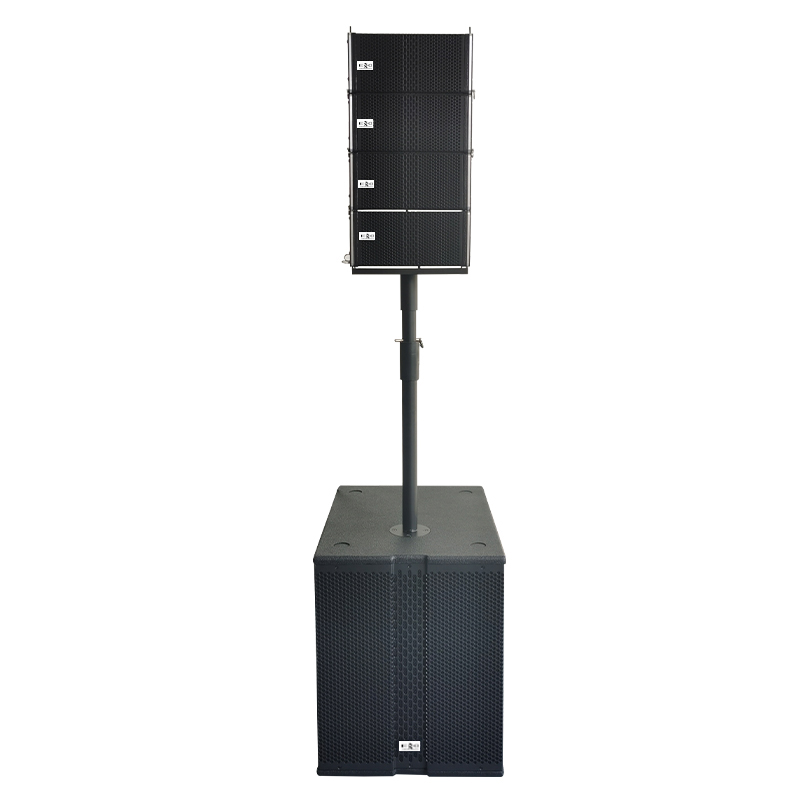

The MLA156 is a complete mini line array system pairing four array satellites with a 15″ powered subwoofer. Class-D amplification and 24-bit / 96kHz DSP drive the system to a maximum SPL of 129dB, covering 45Hz to 20kHz, with 1.5° inter-element angle adjustment for precise array shaping and onboard Bluetooth.
| SYSTEM | |
| Type | Mini line array system |
| Number of Array Elements | 4 |
| Maximum SPL (system) | 129dB |
| Amplifier Type | Class D |
| DSP | 96kHz sampling frequency, 24-bit |
| Bluetooth Module | Yes |
| THD | ≤ 0.1% |
| Protection | DSP-based multiband limiter, short circuit, overheating, overcurrent, DC |
| ARRAY SATELLITES | |
| Power AES | 60W per unit |
| Amplifier Power (DSP) | 2 x 300W RMS / 2 x 600W peak |
| Frequency Range | 150Hz – 20kHz |
| Impedance | 16Ω |
| Drivers | 2 x 3″ |
| HF Driver (LH-23H) | 1″ titanium |
| Sensitivity | 96dB (1W @ 1m) |
| Angle Adjustment | 1.5° x 1.5° |
| Coverage | 60° x AXI |
| Dimensions | 555 x 330 x 365 mm |
| Weight | 34 kg |
| SUBWOOFER | |
| Driver | 15″, 4″ voice coil, 100 OZ |
| Frequency Range | 45Hz – 150Hz |
| Power Output | 1000W RMS / 2000W peak |
| Dimensions | 695 x 525 x 645 mm |
| Weight | 38 kg |
