EXD8000
EXD8000 is a 4-channel professional digital power amplifier delivering 2400W x 4 @ 4Ω and 1200W x 4 @ 8Ω. Class-D output stage, balanced XLR inputs with parallel link, locking Speakon outputs and six-stage protection — short circuit, over current, clipping limit, power-on, overheat and DC.
Product Overview
Key Specifications

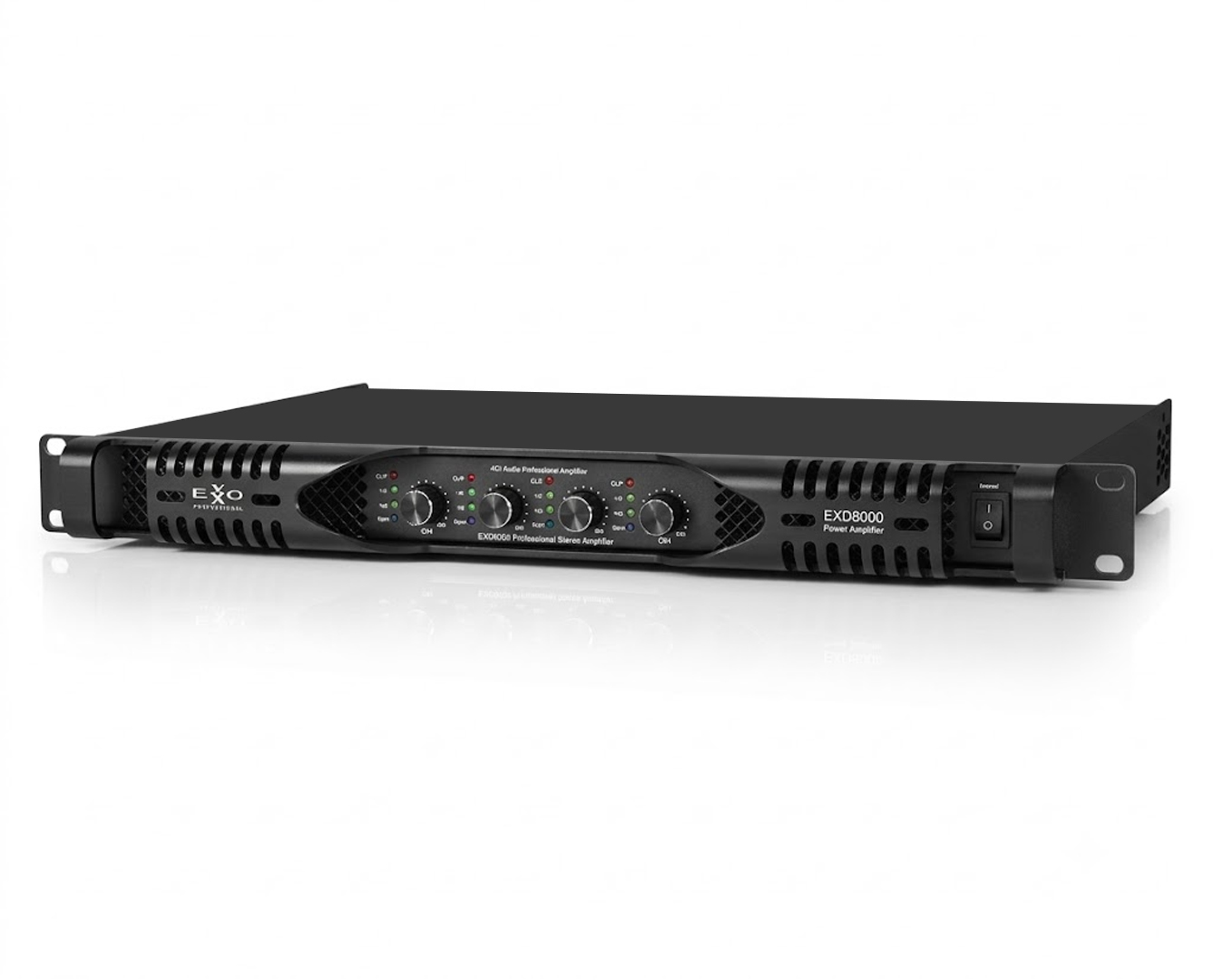

EXD8000 4-Channel Digital Power Amplifier – 2400W x 4 @ 4Ω
The EXD8000 is a four-channel Class-D digital power amplifier from EXXO Professional, built for sound engineers and rental companies who need serious output from a compact, road-ready chassis. Delivering 2400 watts per channel into 4Ω and 1200 watts per channel into 8Ω, the EXD8000 drives a complete four-way system, a pair of subwoofers plus tops, or a full stage-monitor rig from a single rack space — with the headroom to keep transients clean when the room gets loud.
Switch-mode power supply and high-efficiency digital output stages keep the EXD8000 cool, light and stable under sustained load, so the amplifier that leaves your warehouse on Friday is still performing on Sunday night.
Key Features
- 4 x 2400W @ 4Ω and 4 x 1200W @ 8Ω of usable, real-world power
- Class-D digital output stage with switch-mode power supply for high efficiency and low heat
- Independent level control, signal and clip LED indication on every channel
- Balanced XLR input with parallel XLR link output per channel pair for easy daisy-chaining
- Locking Speakon-type outputs on all four channels
- Six-stage protection system covering short circuit, over-current, clipping, power-on surge, overheat and DC fault
- Forced-air cooling with front-to-rear airflow for reliable operation in a packed rack
- Rack-mountable steel chassis with front handles for fast load-in and load-out
Power Output
| Output Power (4Ω, stereo) | 2400W x 4 channels |
| Output Power (8Ω, stereo) | 1200W x 4 channels |
| Channels | 4 |
| Amplifier Class | Class-D digital |
Full Specifications
| Model | EXD8000 |
| Type | 4-Channel Professional Digital Power Amplifier |
| Power Output @ 4Ω | 4 x 2400W |
| Power Output @ 8Ω | 4 x 1200W |
| Frequency Response | TBC |
| THD + N | TBC |
| Signal-to-Noise Ratio | TBC |
| Damping Factor | TBC |
| Input Sensitivity | TBC |
| Input Impedance | Balanced, TBC |
| Input Connectors | Balanced XLR (female) per channel |
| Link Connectors | Parallel XLR (male) link output |
| Output Connectors | Locking Speakon-type, 4 channels |
| Cooling | Forced-air fan cooling |
| Protection | Short circuit, over current, clipping limit, power-on, overheat, DC |
| Power Supply | AC 220–240V / 50–60Hz (switch-mode) |
| Dimensions (W x H x D) | TBC |
| Net Weight | TBC |
Specifications marked TBC are being confirmed and will be updated shortly. Specifications are subject to change without notice as part of ongoing product improvement.
Six-Stage Protection
Live sound is unforgiving, so the EXD8000 protects itself and the loudspeakers connected to it. Short-circuit protection shuts the channel down if a speaker cable is damaged or miswired. Over-current protection guards the output devices when the load drops lower than rated. A clipping pressure limiter catches the signal before hard clipping reaches your drivers. Power-on protection mutes the outputs during start-up to prevent thumps, overheat protection reduces output or shuts the amplifier down if airflow is blocked, and DC protection disconnects the load in the event of a DC fault — the failure most likely to destroy a voice coil.

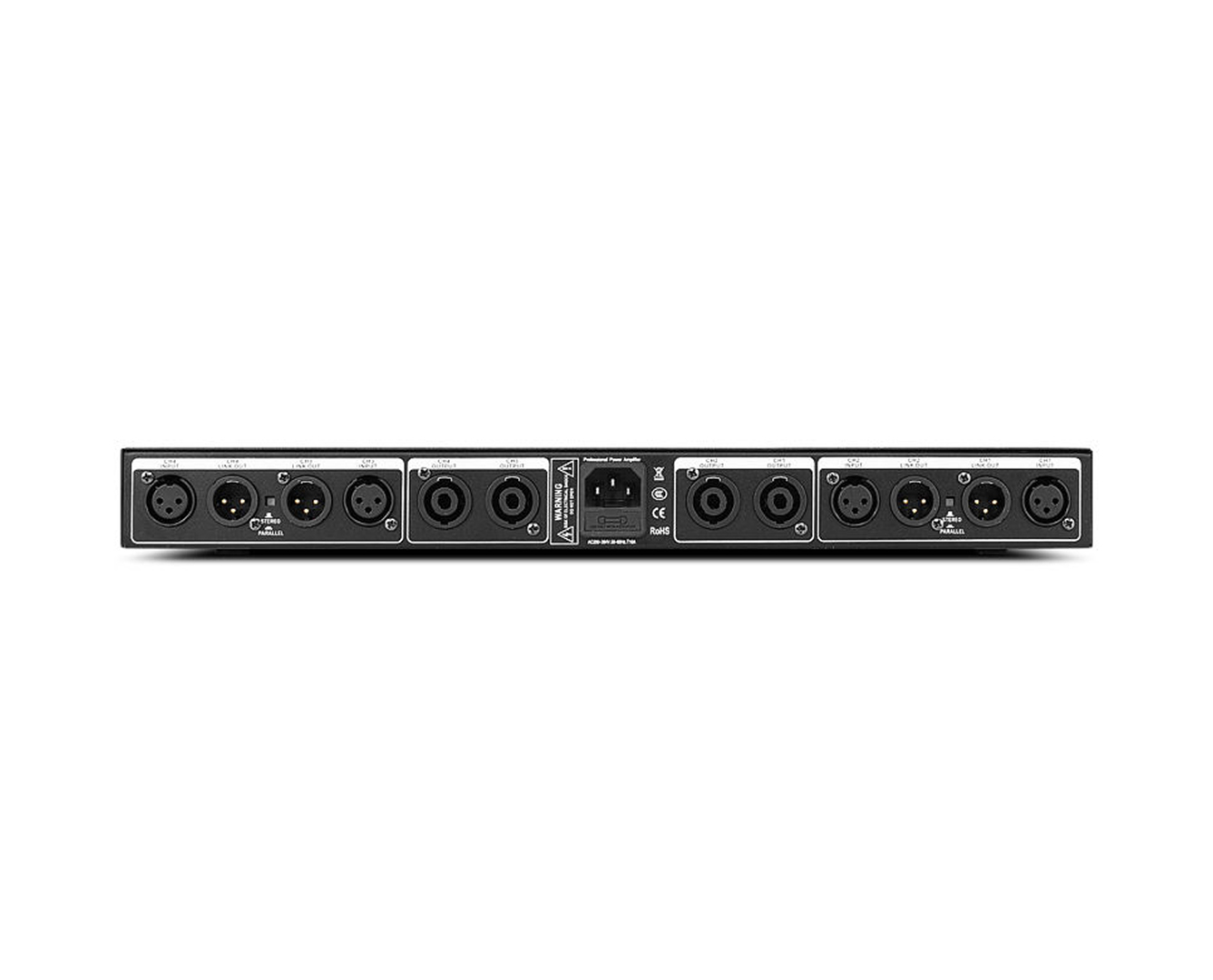

Connectivity
Every channel takes a balanced XLR input, with a parallel XLR link output so you can feed the same source to another amplifier without a splitter. All four outputs use locking Speakon-type connectors for a secure, professional speaker connection. Channel pairs can be run independently for four separate zones or wired for stereo and bridged operation depending on your system design.
Applications
- Live sound reinforcement, concerts and touring rigs
- Auditoriums, convention centres and houses of worship
- Nightclubs, lounges, pubs and DJ systems
- Wedding, event and rental production companies
- Multi-zone installed sound in hotels, gyms and retail spaces
- Driving subwoofers and full-range tops from one amplifier
Frequently Asked Questions
How much power does the EXD8000 deliver?
2400W per channel at 4Ω and 1200W per channel at 8Ω, across all four channels.
Can the EXD8000 drive subwoofers?
Yes. With 2400W available per channel at 4Ω, it comfortably drives high-power 18″ subwoofers, or a pair of subs on two channels and full-range tops on the other two.
Is the EXD8000 rack mountable?
Yes, the chassis is designed for standard 19″ rack mounting with front handles for handling.
